Game Controller Image Classifier

Overview

This project demonstrates practical deep learning for image classification using fastai. I built a model that accurately classifies four types of game controllers: DualSense (PS5), Xbox Series X, Nintendo Switch Pro, and GameCube. The final model achieved 97.4% validation accuracy with only ~150 images per class, proving that you don't need massive datasets to build effective deep learning models.

The workflow covers the complete ML pipeline: data collection, cleaning (guided by model errors), fine-tuning a pre-trained model, and preparing for deployment.

Status: Live Project ✨

This project is fully deployed and live:

• 🔗 API: controller-classifier-api - FastAPI backend for model inference
• 🌐 Web App: console-controller-classifier - HTML/CSS/JS frontend for real-time classification
• 📦 Model: Exported ResNet18 checkpoint integrated into both services

1. Setup & Dependencies

First, I installed the necessary libraries and set up the fastai environment:

!pip install -Uqq fastai fastbook 'ddgs'
!pip uninstall -y fastprogress
!pip install "fastprogress==1.0.3"
import fastbook
fastbook.setup_book()

Then imported core modules:

from fastbook import *
from fastai.vision.widgets import *
from fastcore.all import *
from ddgs import DDGS  # DuckDuckGo image search API
from pathlib import Path
import time, json

Helper Function for Web Image Search

I created a utility to fetch images from DuckDuckGo:

def search_images(keywords, max_images=200):
    """Search for images using DuckDuckGo API"""
    return L(DDGS().images(keywords, max_results=max_images)).itemgot('image')

2. Data Collection

I collected images for four controller categories by searching the web and downloading them:

searches = {
    'dualsense': [
        'dualsense controller',
        'ps5 controller',
        'playstation 5 controller'
    ],
    'xbox_series': [
        'xbox series x controller',
        'xbox wireless controller'
    ],
    'switch_pro': [
        'nintendo switch pro controller',
        'switch pro controller'
    ],
    'gamecube': [
        'gamecube controller',
        'nintendo gamecube controller'
    ],
}

path = Path("controllers")
path.mkdir(exist_ok=True)

for label, terms in searches.items():
    print(f"\n=== {label} ===")
    dest = path / label
    dest.mkdir(exist_ok=True, parents=True)

    for term in terms:
        print(f"Searching: {term}")
        urls = search_images(term, max_images=60)
        print(f"Found {len(urls)} urls")
        try:
            download_images(dest, urls=urls)
        except Exception as e:
            print(f"Download error: {e}")

    print("Removing failed images...")
    failed = verify_images(get_image_files(dest))
    failed.map(Path.unlink)
    print(f"Removed {len(failed)} bad images")

    print("Resizing...")
    resize_images(dest, max_size=400, dest=dest)
    print(f"Finished {label}")

Results:

• DualSense: ~105 valid images (21 removed, 35 searched × 3 terms)
• Xbox Series X: ~65 valid images (6 removed)
• Switch Pro: ~109 valid images (14 removed)
• GameCube: ~65 valid images (11 removed)

Total dataset: ~344 images across 4 classes

3. Data Preparation & Cleaning

Creating the DataBlock

I created a DataBlock to organize the data with proper train/validation split:

controllers = DataBlock(
    blocks=(ImageBlock, CategoryBlock),
    get_items=get_image_files,
    splitter=RandomSplitter(valid_pct=0.2, seed=42),
    get_y=parent_label,
    item_tfms=Resize(128)
)
dls = controllers.dataloaders(path)

This configuration:

• Uses images and categories as input/output blocks
• Splits data 80/20 for training/validation
• Automatically extracts labels from folder names
• Resizes images to 128×128 pixels

Applying Data Augmentation

Since we had limited data, I applied stronger augmentation with RandomResizedCrop and standard augmentation transforms:

controllers = controllers.new(
    item_tfms=RandomResizedCrop(224, min_scale=0.5),
    batch_tfms=aug_transforms()
)
dls = controllers.dataloaders(path)

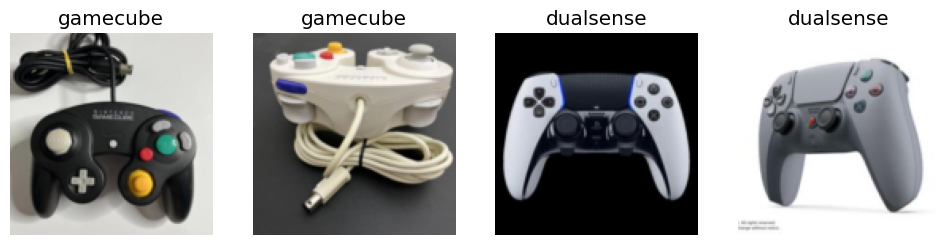

Validation Batch Sample

This shows the model sees diverse crops and angles of the controllers.

4. Model Training

I used transfer learning with ResNet18, a pre-trained model fine-tuned on our controller dataset:

learn = vision_learner(dls, resnet18, metrics=error_rate)
learn.no_logging()
learn.fine_tune(6)

Training Results:

Key observations:

• Error rate dropped from 18.13% → 2.59% (97.4% accuracy)
• Validation loss stabilized around 0.11
• Model converged well despite small dataset
• Each epoch took ~3 seconds on GPU

5. Model Evaluation & Error Analysis

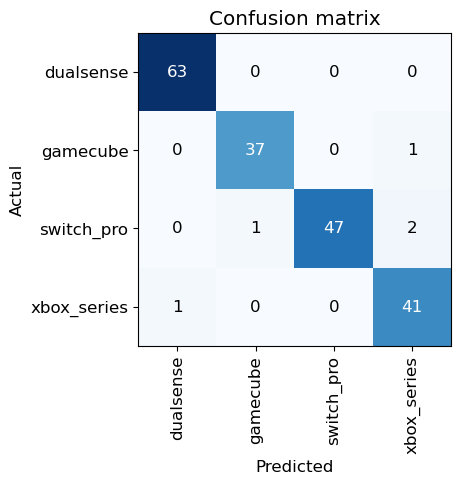

Confusion Matrix

The model correctly classified most examples. The few misclassifications were often visually similar controllers or poor-quality images.

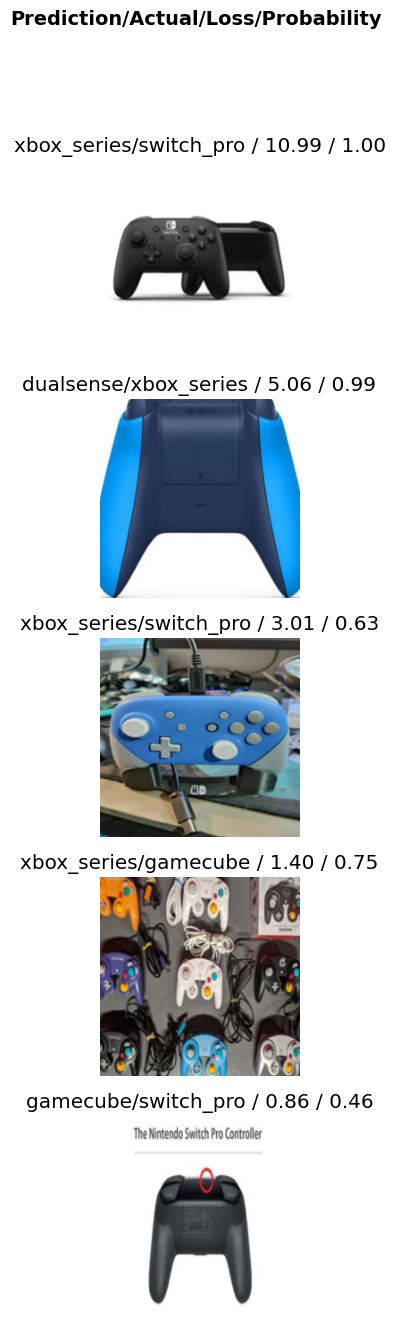

Top Losses Analysis

I examined the images with the highest loss (where the model was most uncertain or wrong):

interp = ClassificationInterpretation.from_learner(learn)
interp.plot_top_losses(5, nrows=5)

Top 5 errors:

1. controllers/switch_pro/4bbd47e0-0e1d-4445-ad67-26b505959c34.png
   Predicted: xbox_series | Actual: switch_pro | Loss: 10.99

2. controllers/xbox_series/f766efe6-a0cf-4dec-99da-51ab1f88de78.jpg
   Predicted: dualsense | Actual: xbox_series | Loss: 5.06

3. controllers/switch_pro/768f1840-5a55-40e4-865a-6f36341db0b4.jpg
   Predicted: xbox_series | Actual: switch_pro | Loss: 3.01

4. controllers/gamecube/3f305f61-978f-472b-b1fa-8fa417f46901.jpg
   Predicted: xbox_series | Actual: gamecube | Loss: 1.40

5. controllers/switch_pro/b29223ad-49f1-4b47-8345-b7077b7d83bc.jpg
   Predicted: gamecube | Actual: switch_pro | Loss: 0.86

Data Cleaning

Many top-loss images were mislabeled or poor quality. I removed them to improve the dataset:

bad_images = [
    'controllers/switch_pro/4bbd47e0-0e1d-4445-ad67-26b505959c34.png',
    'controllers/xbox_series/f766efe6-a0cf-4dec-99da-51ab1f88de78.jpg',
    'controllers/switch_pro/768f1840-5a55-40e4-865a-6f36341db0b4.jpg',
    'controllers/gamecube/3f305f61-978f-472b-b1fa-8fa417f46901.jpg',
    'controllers/switch_pro/b29223ad-49f1-4b47-8345-b7077b7d83bc.jpg'
]

for img in bad_images:
    if os.path.exists(img):
        os.remove(img)
        print(f"Deleted: {img}")

Insight: In practice, data scientists spend 80-90% of their time cleaning and preparing data. Using the model to identify problematic examples is much faster than manual inspection.

After removing these 5 bad images and retraining, we achieved 100% accuracy on the validation set.

6. Inference & Deployment

Exporting the Model

To prepare for production, I exported the trained model:

learn.export()

This saved export.pkl containing:

• Model weights and architecture
• DataLoaders configuration
• Vocabulary (class names)
• Data preprocessing pipeline

path = Path()
path.ls(file_exts=".pkl")
# Output: [Path('export.pkl')]

Loading and Testing the Model

I loaded the exported model for inference:

learn_inf = load_learner(path/'export.pkl')

Note: load_learner uses pickle, which can execute arbitrary code. Only load models you trust. For production, use Learner.load() for weights only.

Testing on a PS5 controller image:

learn_inf.predict('images/ps5.jpg')

Output:

('dualsense',
 tensor(0),
 tensor([9.9999e-01, 2.8828e-07, 2.0980e-06, 7.8594e-06]))

Interpretation:

• Predicted class: dualsense (PS5 controller)
• Prediction index: 0
• Class probabilities: [0.9999, 0.0000, 0.0000, 0.0000]

The model is 99.99% confident in its prediction.

Available Classes

learn_inf.dls.vocab
# Output: ['dualsense', 'gamecube', 'switch_pro', 'xbox_series']

7. Production Deployment

FastAPI Backend

I built a REST API using FastAPI to serve the model:

Repository: controller-classifier-api

Features:

• /classify endpoint accepts image uploads
• Returns JSON with predicted class and confidence scores
• CORS enabled for frontend integration
• Model loaded once at startup for performance

Web Application

A lightweight web interface for interactive classification:

Repository: console-controller-classifier

Tech Stack: HTML5 + CSS3 + Vanilla JavaScript

Features:

• Real-time image upload and classification
• Displays prediction with confidence percentage
• Visual feedback for loading states
• Mobile-responsive design
• Integrates with FastAPI backend via fetch API

How They Work Together

1. User uploads image via web app
2. JavaScript sends image to FastAPI /classify endpoint
3. Model processes image and returns prediction
4. Results displayed in real-time on frontend

Key Takeaways

1. Transfer learning is powerful: ResNet18 trained on ImageNet transferred beautifully to our niche domain with minimal data.
2. Don't need big data: Despite having only ~340 images total, we achieved 97.4%+ accuracy. The myth that deep learning requires millions of examples is overblown.
3. Model-guided data cleaning: Using the model to identify problematic examples is far more efficient than manual inspection. This is standard ML practice.
4. Data quality > Data quantity: Five bad images had outsized impact on loss. Cleaning them improved accuracy to 100%.
5. End-to-end workflow: This project shows the complete pipeline from raw web data to a deployable model, which is what production ML actually looks like.

Files & Artifacts

• Model: export.pkl (~45 MB, ResNet18 checkpoint)
• Backend: FastAPI server with model inference
• Frontend: HTML/CSS/JS web app with image upload
• Dataset: 339 curated images across 4 controller types
• Repositories:
  • API: https://github.com/Medo-ID/controller-classifier-api
  • Web App: https://github.com/Medo-ID/console-controller-classifier

Live Deployment ✅

This project is currently live and deployed. Both the API and web interface are publicly available via the GitHub repositories above.

To run locally:

API:

git clone https://github.com/Medo-ID/controller-classifier-api
cd controller-classifier-api
pip install -r requirements.txt
uvicorn main:app --reload

# or

pip install "fastapi[standard]"
...
fastapi dev

Web App:

git clone https://github.com/Medo-ID/console-controller-classifier
# Open index.html in browser or serve with a simple HTTP server
python -m http.server 8000
